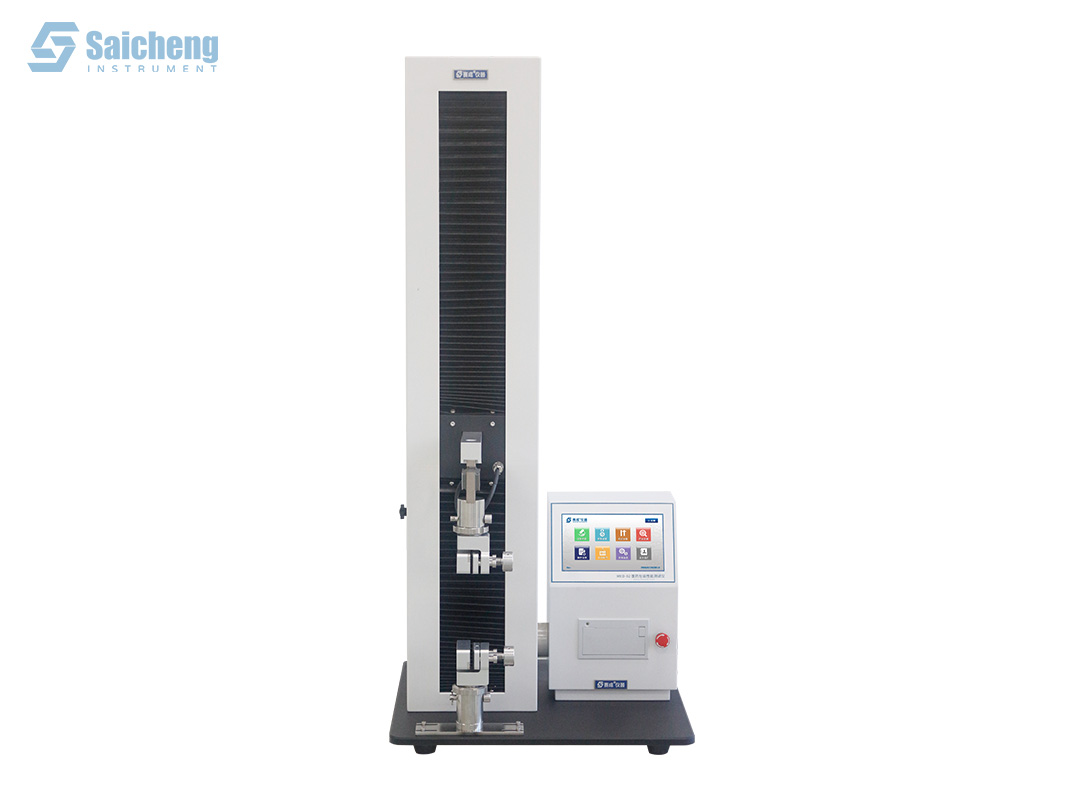

Medical Packaging Tester MED-02

Model: MED-02
Brand: Saicheng Instrument
Category: Tensile Testing Machine
Rating: 4.9 (based on 12 ratings)
Supply: 10 Sets / Week In stock!
Price: Competitive Price
Share:

MED-02 Medical Packaging Tester is professionally applicable to the determination of force properties of various pharmaceutical packaging materials.

Request a Quote

After-sales Service

Medical Packaging Tester MED-02 on Sale at Cost Price

Product Introduction

The MED-02 Medical Packaging Tester, also commonly known as a Medical Packaging Tensile Strength Tester, is primarily used to test the heat seal strength, tensile strength, peel strength, and elongation at break of pharmaceutical packaging materials, aluminum foil, rigid PVC sheets, composite films, syringes, cartridge vials, and other products. It also performs tests such as ampoule breaking force; opening force, puncture force, and aluminum foil tear force for aluminum-plastic combination caps; as well as syringe leak testing, sliding performance testing, and needle-to-hub connection force testing. This instrument is a multifunctional testing device capable of performing various tests using different fixtures.

Product Features

7-inch color touchscreen with graphical user interface (GUI).
Suitable for various test methods, including tensile strength, peel strength, opening force, puncture resistance, breaking strength, and syringe glide force.
The instrument displays real-time measurement data, trend graphs, and test results.
High-precision sensors ensure high accuracy and repeatability of the force measurement system.
Motion control system with high precision and smooth operation.
Multiple intelligent configurations, including limit protection, overload protection, auto-positioning, and power-off memory.
The instrument can be equipped with SAICHENG's latest operating software (optional), featuring a user-friendly interface, intelligent data processing, strict user management, and secure data storage.
Equipped with micro-printer and standard USB interface.
Complies with GMP standards for multi-level user authority.

Test Standards

This test instrument conforms to many national and international standards:

ISO 7864, ISO 7886, ISO 9626, ISO 8537, ISO 23908, ISO 37, ASTM E4, ASTM D828, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904

Applications

This instrument is equipped with more than 100 grips for testing more than 1000 materials. And customization is also available for special material tests.

Medical Packaging Materials

Test Materials	Applications
IV Bags and IV Bottles	Used for testing medical packaging materials such as IV bags and low-density polyethylene (LDPE) IV bottles for puncture resistance, suspension strength, and injection port seal integrity.
Ampoule	Used for conducting breaking strength tests on pharmaceutical packaging materials such as ampoules.
Aluminum-plastic Composite Cap	Used for testing mechanical properties—including opening force and tear strength—of pharmaceutical packaging materials, such as aluminum-plastic composite caps.
Rigid PVC Sheet	Used for testing the tensile strength, heat seal strength, peel strength, and elongation at break of pharmaceutical packaging materials such as rigid PVC sheets.
Syringes and Needles	Syringes and Needles Used for testing disposable syringes, needles, pre-filled syringes, pen injectors, and similar products for puncture force, gliding performance, barrel integrity, the secure connection between the needle hub and the syringe barrel, and the fit between the needle hub and the protective cap.
Aluminum Foil for Medical Use	Used for testing aluminum foil used in pharmaceutical packaging for heat seal strength, tensile strength, and other properties.

Technical Specifications

Items	Specifications
Test Range	500 N (Standard)
Test Range	50 N, 100 N, 250 N, 1 kN, 1.5 kN, 2 kN (Optional)
Accuracy	0.5% FS
Resolution	0.0001 N
Accuracy of Displacement	0.5% FS
Resolution of Displacement	0.001 mm
Test Speed	0 ~ 500 mm/min (Adjustable)
Sample Width	30 mm (Standard)
Sample Width	50 mm (Optional)
Clamping Way	Manual (Pneumatic clamps can be customized)
Stroke	600 mm
Power Supply	AC 100-240V 50/60Hz (can be changed to local requirement)
Instrument Dimension	450mm(W) x 450mm(D) x 1000mm(H)
Net Weight	55 kg

Configurations

Standard Configurations: Instrument, Micro Printer

Optional Parts: Professional Software, 485 Communication Cable, Standard Roller, Test Plate, Sample Cutter, Breaking Force Fixture, Opening Force Fixture for Modular Cover, Tension Fixture, Needle Penetration Test Fixture, Sliding Performance Test Fixture, Body Tightness Test Fixture, Bonding Strength Test Fixture, Connecting Force Fixture, Pulling Force Fixture, Floating Roller Fixture, Low-speed Unwinding Device, etc.

Please Note: Jinan Saicheng is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Jinan Saicheng reserves the rights of final interpretation and revision.
