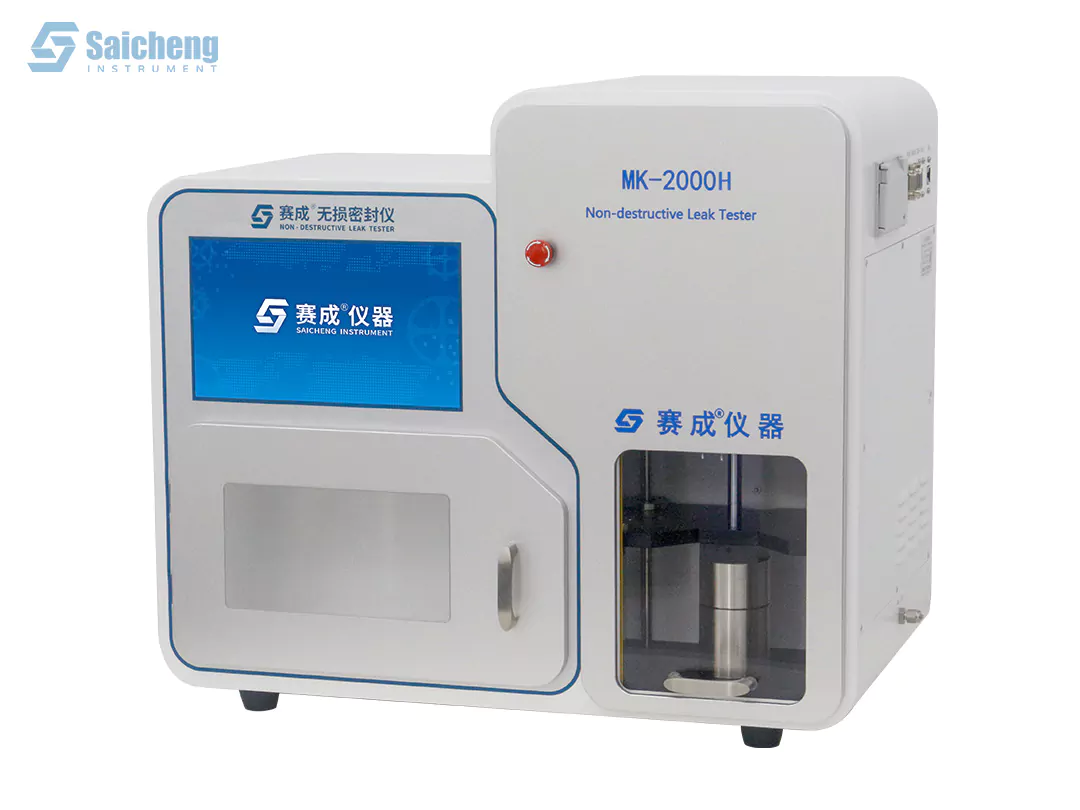

Non-destructive Micro Leak Tester MK-2000H

The MK-2000H Non-destructive Micro Leak Tester, also known as the Container Closure Integrity Tester (CCIT), employs non-destructive testing technology to meet the requirements of both vacuum decay and pressure decay testing methods. It is a highly versatile instrument, used for the professional testing of micro-leakage in a wide range of containers, including ampoules, vials, pre-filled syringes, bottles, non-porous pouches, blow fill seal strips medical devices.

Product Features

• 10-inch touchscreen tablet running on the Windows 10 operating system.
• Adopting non-destructive testing methods for micro-leakage detection in finished packaging allows samples to be tested without compromising their integrity, reducing the overall cost of testing.
• The system can detect small leakage holes (less than 5 microns) and identify larger leakage holes. Based on the detected leakage, the system automatically determines whether the sample meets quality standards.
• This instrument employs two core technologies: vacuum decay and pressure decay.
• It is capable of detecting leak rates as low as 0.03 cc/min.
• The test chamber is constructed from 316 stainless steel, which can be easily replaced by the user to accommodate diverse samples.
• Equipped with a micro-printer, the instrument automatically prints test results upon completion.
• Standard USB interface.
• The instrument is embedded with SAICHENG's latest operating software, featuring a user-friendly interface, intelligent data processing, robust user management, and secure data storage.

Test Princple

The non-destructive micro-leak tester uses pressure decay, vacuum, or gas detection methods to identify leaks in sealed packaging. By measuring pressure variation or gas flow, it can locate even the minutest leaks without damaging the package.

Test Standards

This test instrument conforms to many national and international standards:

ASTM F2338-13, USP <1207>, YY/T 0681.18-2020.

Test Applications

• Pharmaceutical packaging: Blister packs, vials, ampoules, pre-filled syringes.
• Medical device packaging: Pouches, trays, sterile barrier systems.
• Food packaging: Vacuum-sealed bags, modified atmosphere packaging (MAP), flexible pouches.
• Industrial products: Electronic components, high-value parts.

Technical Specifications

Configurations

Standard Configurations: Instrument, Micro Printer, Test Chamber

Optional Parts: Calibrated Flow Meter, Customized Test chamber, Positive Specimen, Negative Specimen

Why Choose Our Micro Leak Tester?

Our non-destructive micro leak tester provides a reliable solution for detecting leaks in pharmaceutical, medical device and food packaging without damaging samples. Designed for high sensitivity and compliance with international standards, it helps to ensure product safety and packaging integrity.

• Non-Destructive: Preserves the product and packaging for further use or sale.
• High Sensitivity: Detects micro-leaks that are invisible to the naked eye.
• Wide Applicability: Serves the pharmaceutical, medical device, and food packaging industries.
• Standards Compliant: Meets ASTM F2096 and other package integrity testing standards.
• Cost-Efficient: Eliminates product loss during testing, reducing waste and costs.

See for Yourself – Request a Free Demo Today

Ensure the highest level of package integrity and safety with our non-destructive leak testers. Contact our experts now for a personalized solution and a competitive quote.
