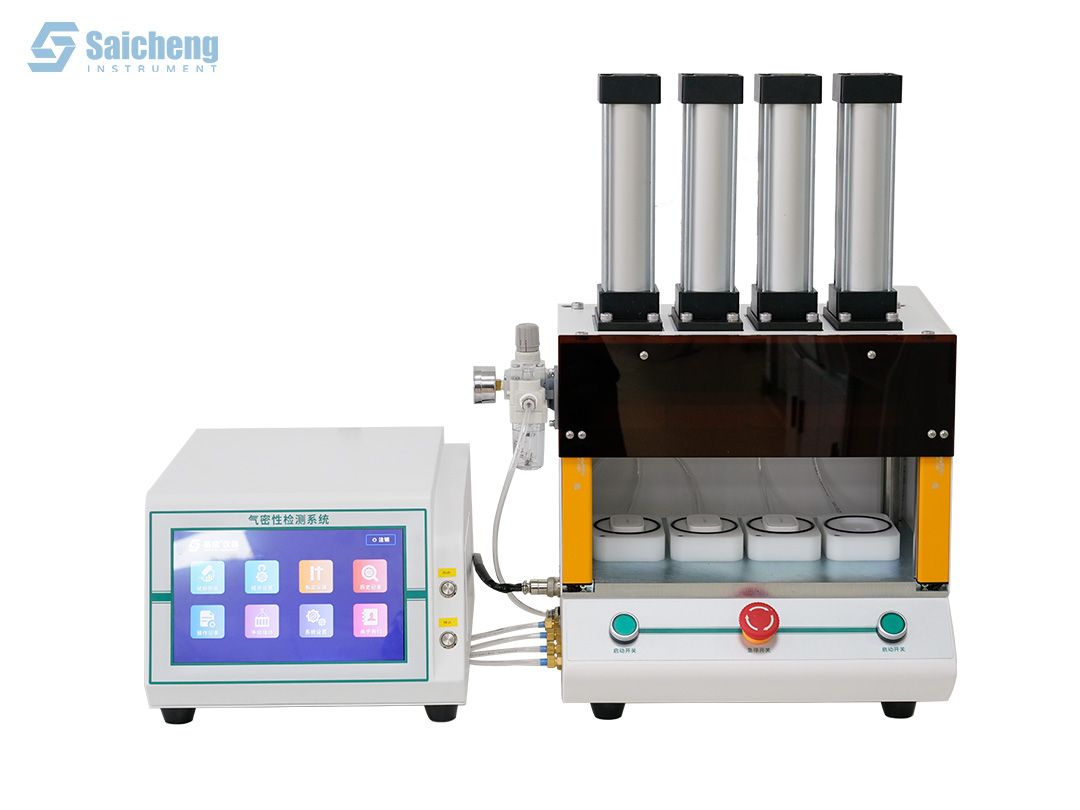

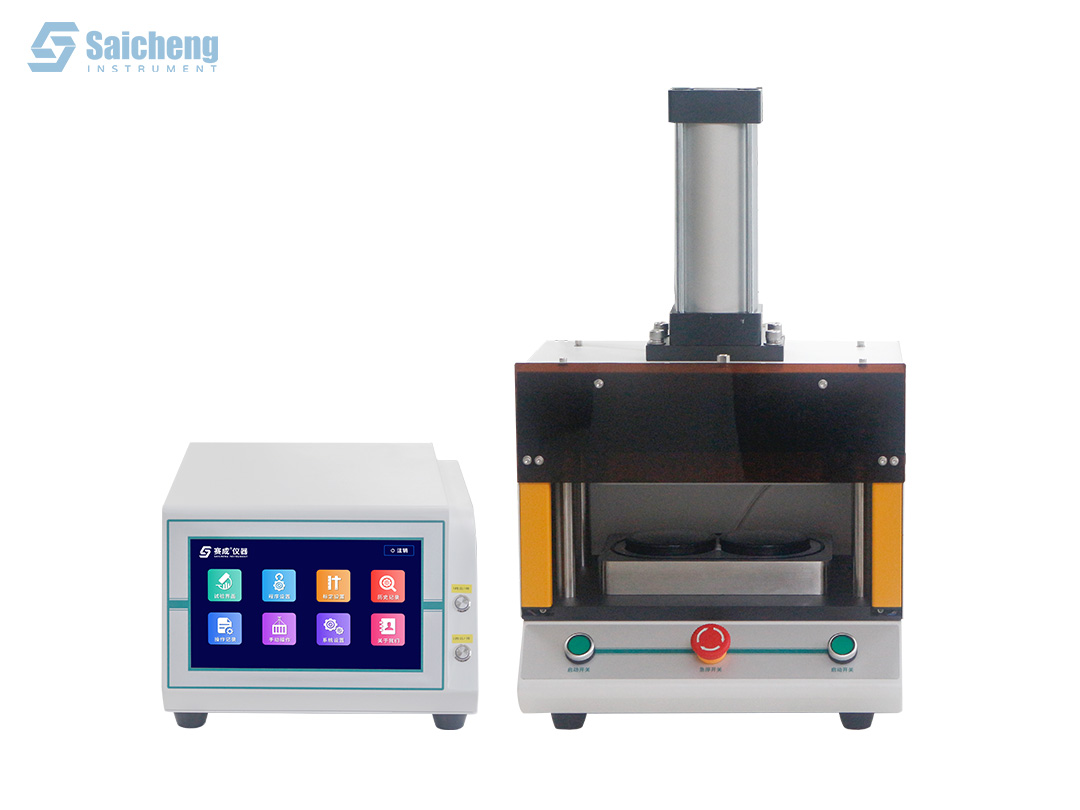

SP-100 Pressure Decay Leak Tester
- Model: SP-100
- Brand: Saicheng Instrument
- Category: Leak & Seal Integrity Tester
- Rating:
- Supply: 10 Sets / Week In stock!
- Price: Competitive Price
- Share:
SP-100 Pressure Decay Leak Tester on Sale at Cost Price
Product Introduction
The SP-100 Pressure Decay Leak Tester is one of the most widely used high-precision instruments for leak testing in manufacturing and is ideal for automotive components, consumer electronics, medical devices, and outdoor security equipment.
Pressure decay leak testing is a reliable method for detecting leaks in sealed systems. By tracking pressure changes over time, manufacturers can identify even the smallest leaks, helping to ensure product quality and safety. Saicheng Instruments offers precise, user-friendly pressure decay leak testers that deliver accurate, nondestructive testing for a wide range of applications.
Product Features

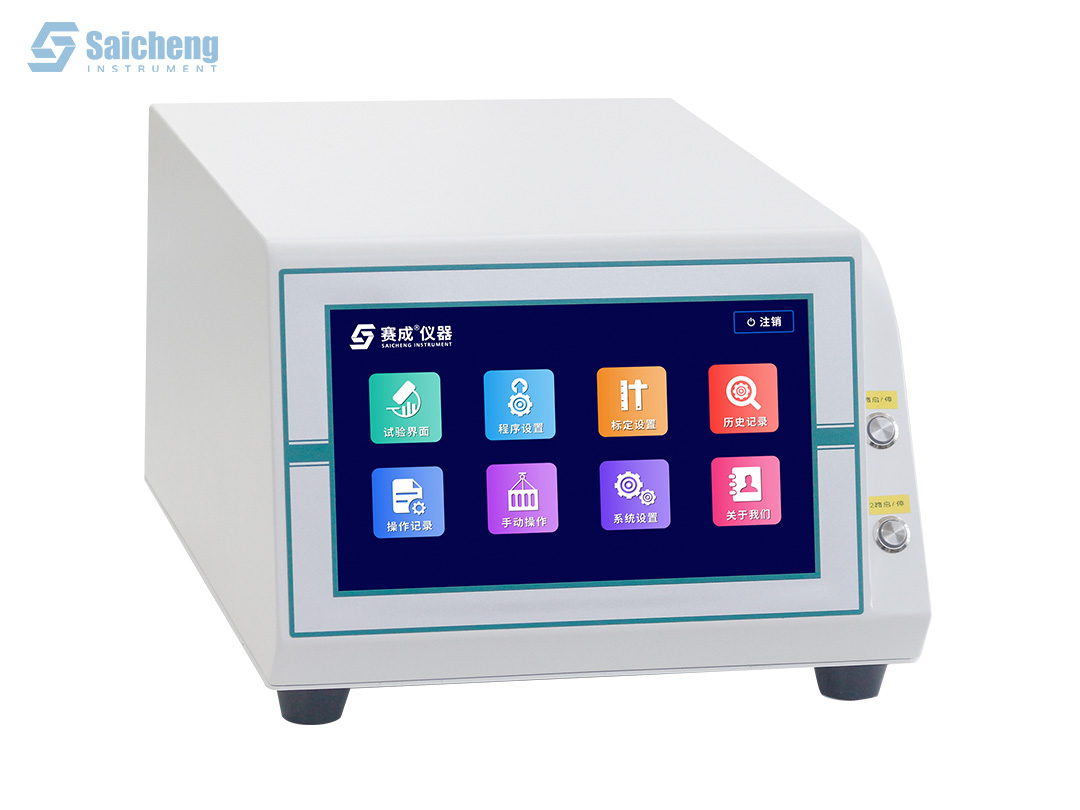

- 10-inch color touchscreen with graphical user interface (GUI).
- This instrument offers a variety of test ranges, providing a wide testing scope and broad applicability.
- This instrument supports both positive and negative pressure modes.
- The “IVT Valve Island Design” significantly improves testing accuracy, ensures instrument stability, and greatly increases gas filling speed.
- One-click operation for testing, automatic compilation of test results, and intelligent, highly efficient testing.
- The instrument is equipped with a built-in RS-232 serial port, RS-485 serial port, RJ45 Ethernet port (optional), and USB communication port.
- This instrument features multi-level user permissions.
- The instrument displays test results in multiple units. Supported pressure units include Pa, kPa, MPa, psi, bar, mbar, mmHg, and kgf/cm². Supported leakage rate units include mbar, mmHg, Pa/s, ml/min, cc/min, and SCCM (10μm).
Test Principle
The entire testing process consists of only four stages: inflation, equilibration, testing, and deflation. The test cycle lasts between 3 and 25 seconds, with the duration primarily depending on the volume of the test specimen and the test pressure.

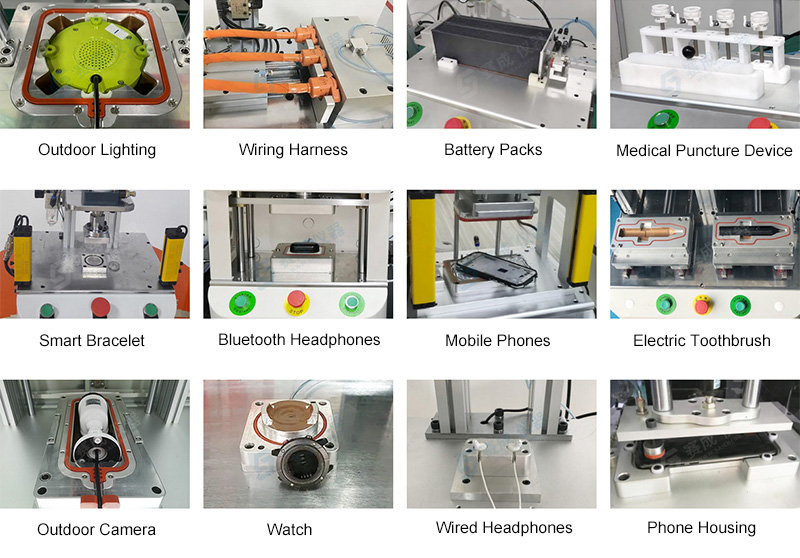

Test Applications
This instrument is equipped with various test fixtures for leakage testing on a wide range of materials. Customization is also available for testing special materials.
| Test Industry | Applications |
|---|---|
|
Automotive |
Headlights, in-car cameras, charging stations, charging cables, engine parts, shark fin antennas, etc. |
|
Medical |
Catheters, syringes, IV bags, implantable device housings, etc. |
|
Consumer Electronics |
Water-resistant enclosures (smartphones, wearables), battery cells, Bluetooth headphones, smartwatches, electric toothbrushes, etc. |
|
Packaging |
Blister packs, sterile barrier pouches, etc. |
Technical Specifications
| Items | Specifications |
|---|---|
| Test Range | -90 kPa ~ 1.0 MPa |
| -90 kPa, -60 kPa, 100 kPa, 400 kPa, 600 kPa, 1.0 MPa (Optional) | |
| Accuracy | 0.2% FS |
| Resolution | 1 Pa |
| Pressure Regulation Methods | Mechanical or Electronic Voltage Regulation |
| Gas Pressure | 0.5 ~ 1.0 MPa (out of supply scope) |
| Port Size | Φ6 mm PU tubing |
| Power Supply |
AC 100-240V 50/60Hz (can be changed to local requirement) |
| Instrument Dimension | 320mm(W) x 400mm(D) x 265mm(H) |
| Net Weight | 18 kg |
Configurations
Standard Configurations: Instrument, Micro Printer
Note: 1. The air connection of the instrument is Φ6 mm PU Tubing. 2. Customers need to prepare for air source.
