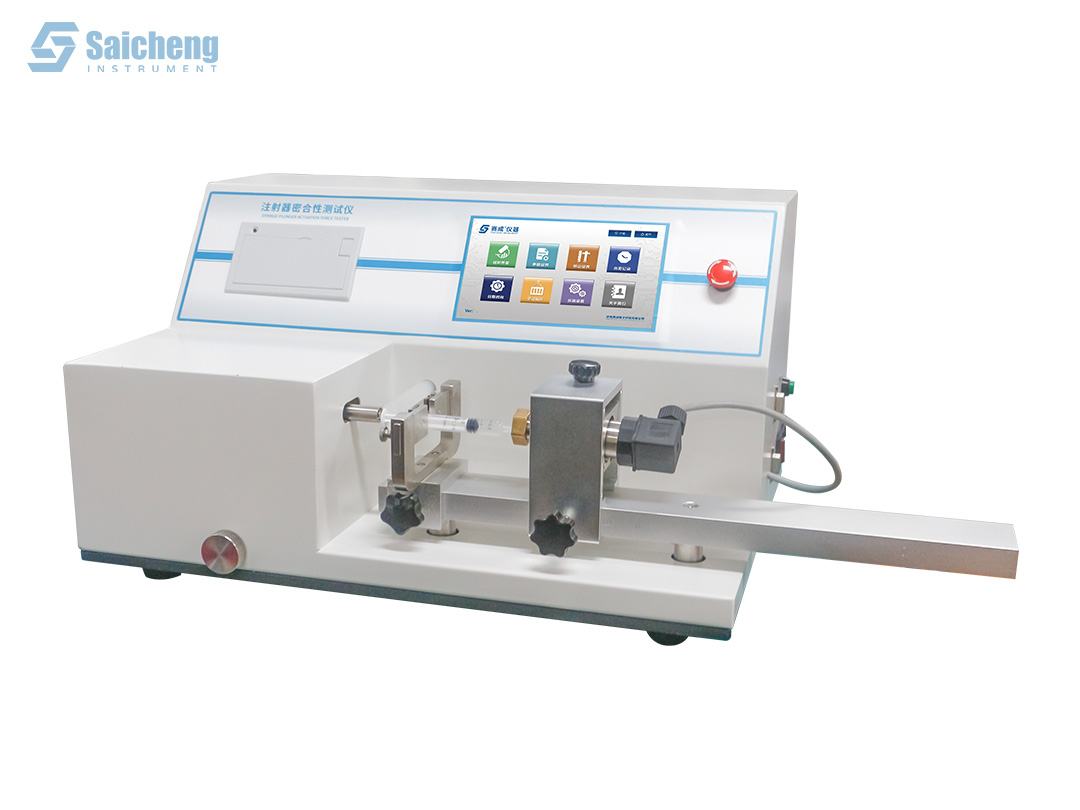

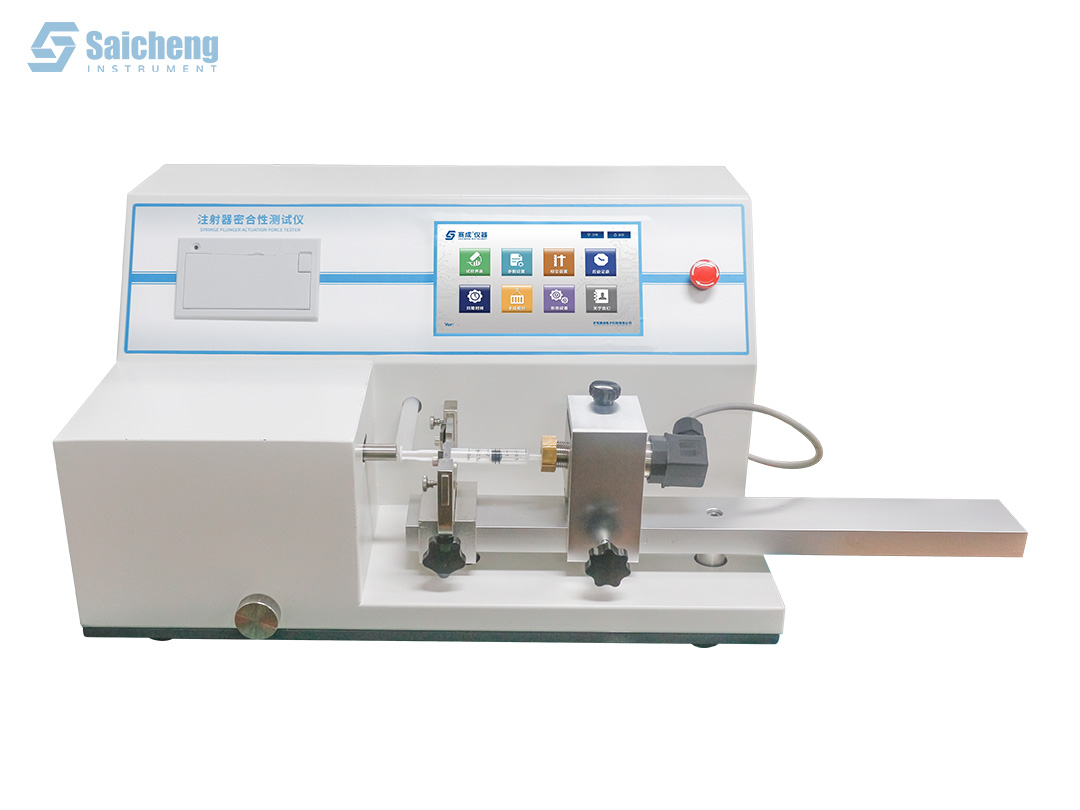

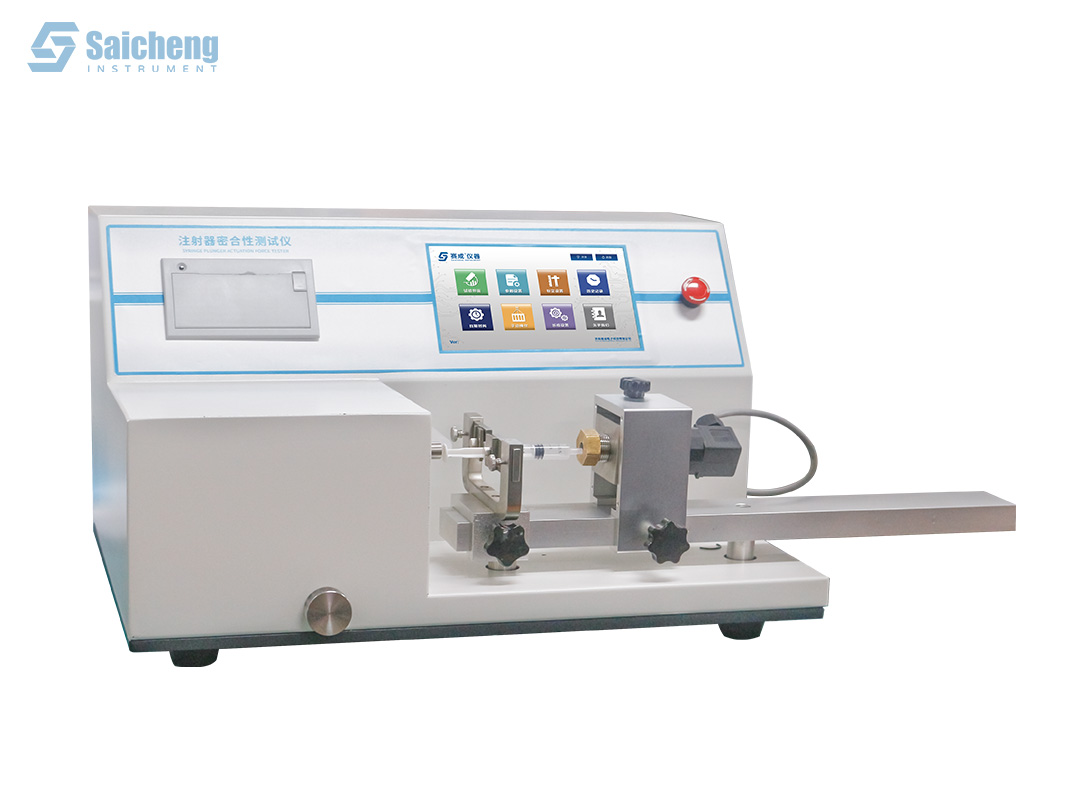

Medical Syringe Positive Pressure Tightness Tester ZY-02
- Model: ZY-02
- Brand: Saicheng Instrument
- Category: Syringe and Needle
- Rating:
- Supply: 10 Sets / Week In stock!
- Price: Competitive Price
- Share:
Medical Syringe Positive Pressure Tightness Tester ZY-02 on Sale at Cost Price
Product Introduction
The ZY-02 Medical Syringe Positive Pressure Tightness Tester is a precision instrument designed to test the tightness (liquid leakage resistance) of various syringe types, including hypodermic syringes, prefilled syringes, insulin injection pens, and other injection systems.
Product Features
- 7-inch color touchscreen with graphical user interface (GUI)
- The instrument provides fully automatic control of lateral force and axial pressure with one-button operation.
- Real-time display of lateral force and axial pressure ensures data accuracy.
- This instrument features automatic data storage and retains memory even after power-off.
- This instrument is equipped with multiple safety features to prevent accidents caused by improper operation during testing, including an emergency stop button and overload protection.
- Equipped with a micro-printer and automatically prints test results upon completion
- Standard USB interface for convenient data transfer
- This instrument features multi-level user permissions, compliant with GMP standards.
- ISP online control and upgrade capabilities enable remote modification of test functions as needed.
Test Standards
This test instrument conforms to many national and international standards:
ISO 7886 – Sterile hypodermic syringes for single use
GB 15810-2019 – Sterile syringes for single use
Test Applications
| Basic Applications |
|---|
|
Sterile Syringes, Disposable Syringes, Prefilled Syringes |
Technical Specifications
| Items | Specifications |
|---|---|
| Lateral Force | 0.25 N ~ 3 N |
| Force Accuracy | 1% FS |
| Axial Pressure | 0 ~ 400 kPa |
| Pressure Accuracy | 1% FS |
| Nominal Capacity | 1 ~ 60 mL |
| Test Time | 0 ~ 9999s (adjustable) |
| Power Supply |
AC 100-240V 50/60Hz (can be changed to local requirement) |
| Instrument Dimension | 350 mm (W) x 700 mm (D) x 300 mm (H) |
| Net Weight | 15 kg |
Configurations
Standard Configurations: Instrument, Micro Printer, Test Fixture
