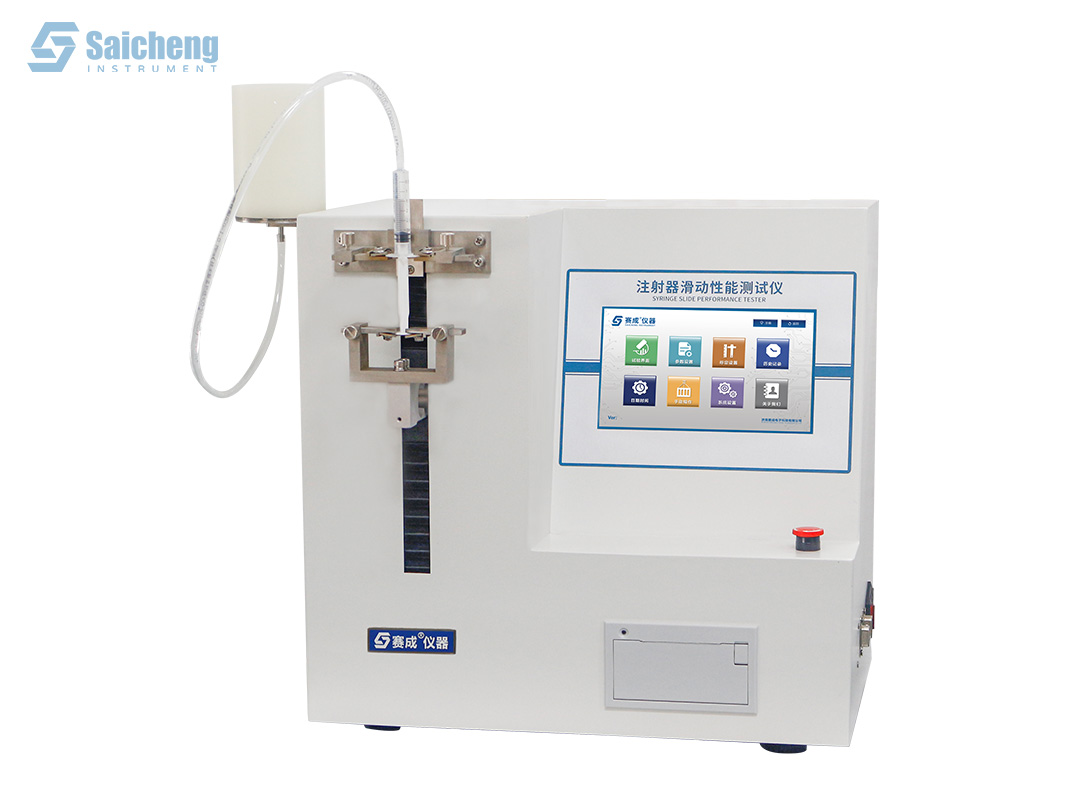

Medical Syringe Sliding Resistance Tester HDX-03
- Model: HDX-03
- Brand: Saicheng Instrument
- Category: Syringe and Needle
- Rating:
- Supply: 10 Sets / Week In stock!
- Price: Competitive Price
- Share:
Medical Syringe Sliding Resistance Tester HDX-03 on Sale at Cost Price
Product Introduction
The HDX-03 Syringe Sliding Resistance Tester is a high-precision testing instrument designed to measure the glide force of various syringes, including medical syringes, prefilled syringes, and insulin injection pens.
Product Features
- 7-inch color touchscreen with graphical user interface (GUI)
- High-precision sensors ensure high accuracy and repeatability of the force measurement system.
- Real-Time Force Curve Display: Displays initial, average, and maximum force values throughout the test.
- Motion control system with high precision and smooth operation.
- This instrument features automatic data storage and retains memory even after power-off.
- This instrument is equipped with multiple safety features to prevent accidents caused by improper operation during testing, including an emergency stop button and overload protection.
- Equipped with a micro-printer and automatically prints test results upon completion
- Standard USB interface for convenient data transfer
- This instrument features multi-level user permissions, compliant with GMP standards.
- ISP online control and upgrade capabilities enable remote modification of test functions as needed.
Test Principle
The instrument evaluates syringe plunger sliding performance within the barrel by simulating the plunger’s motion. During the test, it secures the syringe to a test stand and simulates real-world conditions by controlling movement speed and applied pressure, thereby assessing sliding performance.
| Parameter | Description |
|---|---|
| Break-Loose Force | The initial peak force required to start the plunger moving from rest. |
| Glide Force | The average force required to sustain plunger movement throughout the injection. |
| Maximum Force | The highest force recorded during the entire plunger travel (excluding the break-loose peak). |
Test Standards
This test instrument conforms to many national and international standards:
ISO 7886 - Sterile hypodermic syringes for single use - General requirements
ISO 11040-4 - Prefilled syringes (Part 4 for sliding force of glass barrels)
GB 15810-2019 - Sterile syringes for single use
Test Applications
| Basic Applications |
|---|
|
Disposable sterile injection needles, prefilled syringe needles, infusion needles |
Technical Specifications
| Items | Specifications |
|---|---|
| Test Range | 0 ~ 50 N (10 N, 20 N Optional) |
| Resolution | 0.001 N |
| Accuracy | ±0.5% FS |
| Test Speed | 0 ~ 500 mm/min (Adjustable) |
| Nominal Capacity | 1 ~ 100 mL |
| Power Supply |
AC 100-240V 50/60Hz (can be changed to local requirement) |
| Instrument Dimension | 470 mm (W) x 300 mm (D) x 500 mm (H) |
| Net Weight | 20 kg |
Configurations
Standard Configurations: Instrument, Micro Printer
