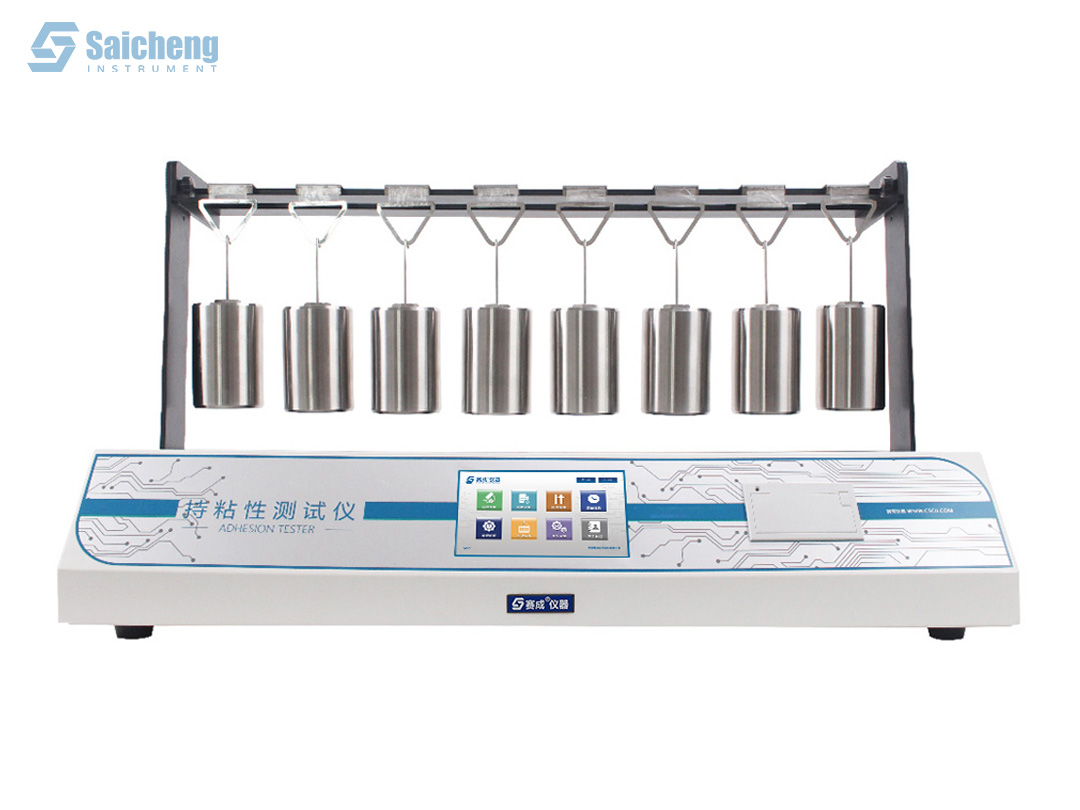

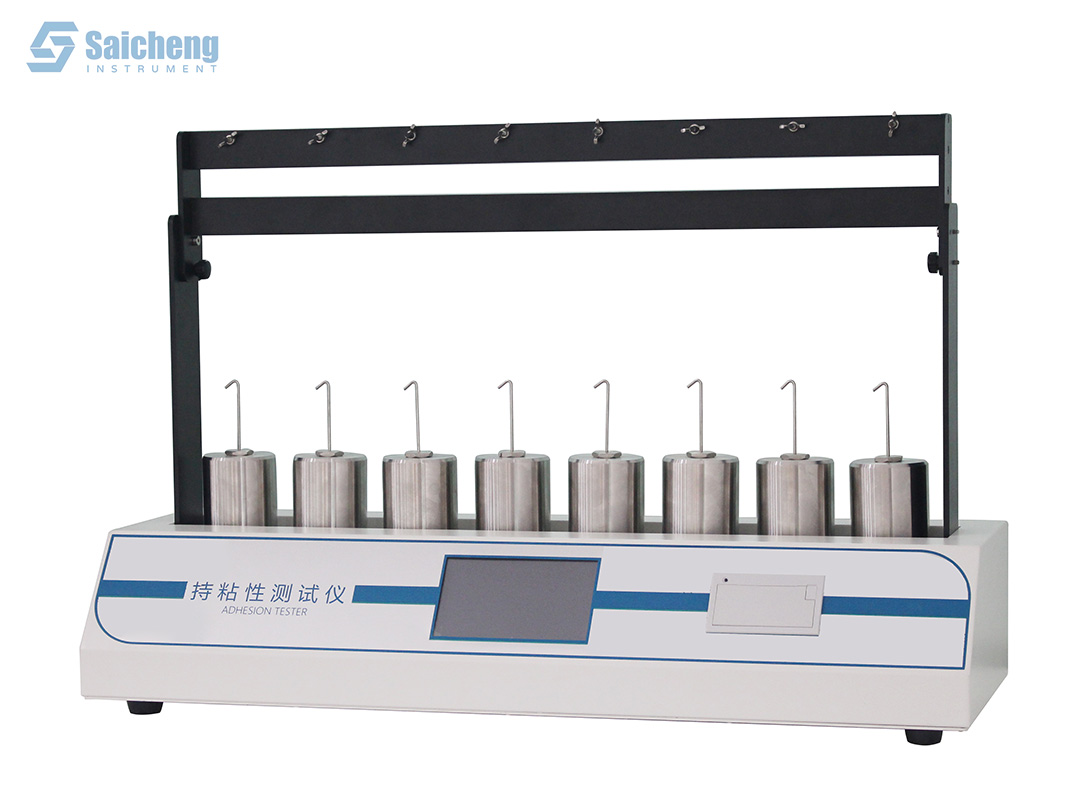

CZY-8S Lasting Adhesive Tester

Product Introduction

CZY-8S Lasting Adhesive Tester is specially designed for adhesives, adhesive tapes, adhesive products and relative industries. It is applicable in holding power test of pressure sensitive adhesive tapes.

Product Features

  • Standard test plates and weights ensures the accuracy of test data
  • LCD screen, with PVC operation panel,which is convenient for customers to operate and view test data
  • Intelligent software provides better user experiences
  • Eight testing stations could test groups of specimens simultaneously.
  • Test results could be printed by the embedded micro printer after the test.

Test Principle

The test plate with adhesive specimen is vertically hanged on the stand and its bottom is attached with a standard weight. The lasting adhesive property could be obtained by measuring the displacement of specimen on vertical test plate or the time to failure at such load.

Test Standards

This test instrument conforms to many national and international standards:

ASTM D3654, JIS Z0237, GB/T 4851

Applications

Basic Applications

Adhesives
Including various adhesives, e.g. pressure-sensitive tapes, medical patches, adhesive labels and protection films.

Technical Specifications

Items Specifications
Standard Roller 2000 g ±100 g
Weight 1000 g ±5 g (with load plate)
Test Plate 125 mm (L) x 50 mm (W) x 1.1 mm (D)
Timing Range 0 ~ 10000 h (Standard)
Number of Stations 8
Instrument Dimension 600mm(L) x 240mm(B) x 600mm(H)
Power Supply AC 220V 50Hz
Net Weight 23 kg

Configurations

Standard Configurations: Instrument, Micro Printer, Weights, Triangle Hook, Test Panel, Standard Roller

Optional Parts: NIST SRM1810A Fiber Board, Horizontal Testing Accessories:Horizontal Testing Frame, Weights, Test Panels

Please Note: Jinan Saicheng is always dedicated to the innovation and improvement of product performance and function. Therefore, technical specifications are subject to change without further notice. Jinan Saicheng reserves the rights of final interpretation and revision.
