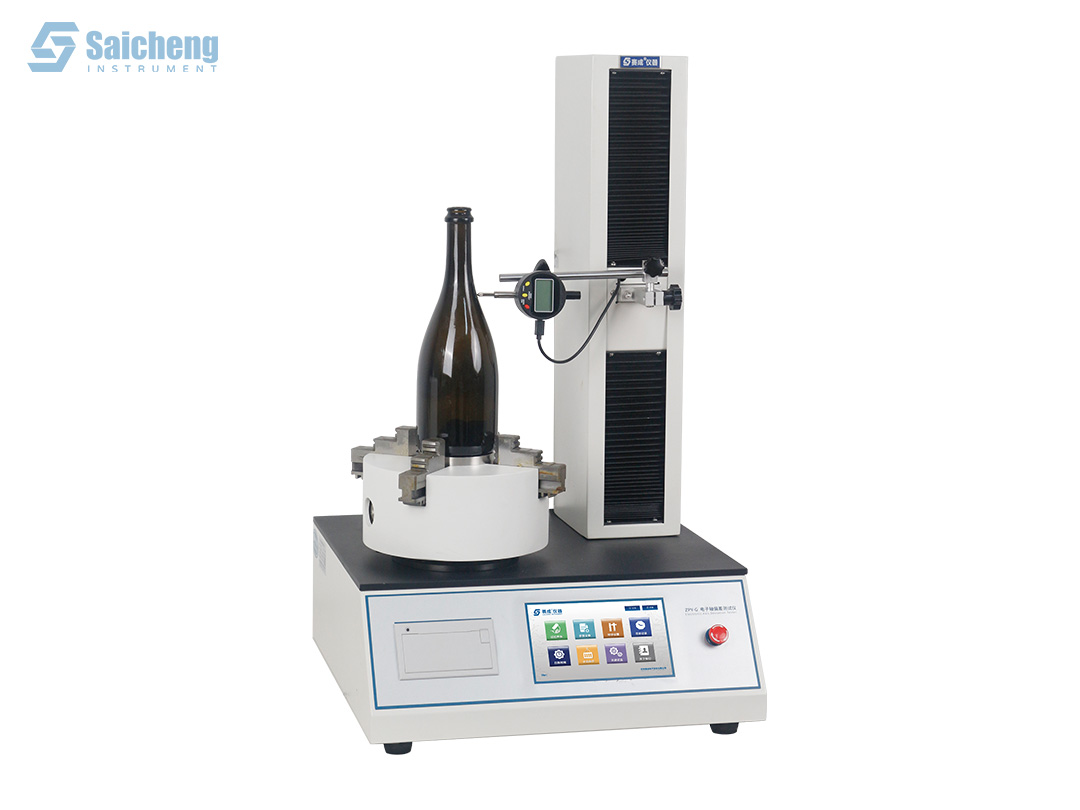

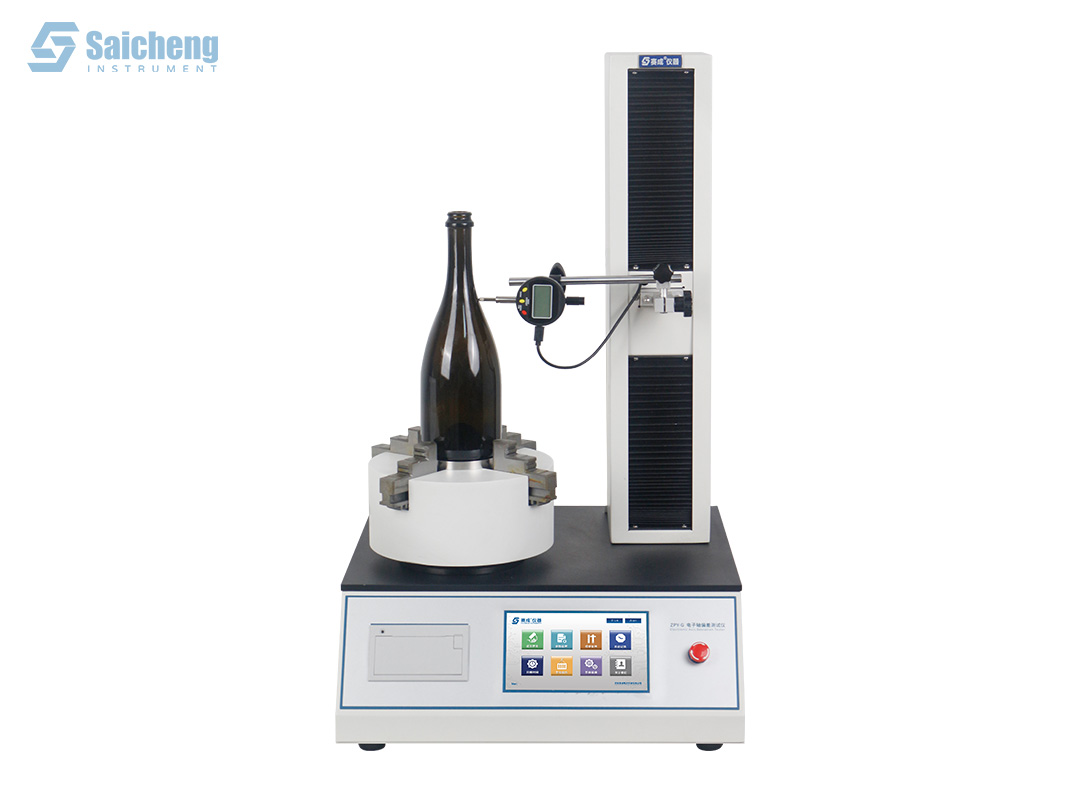

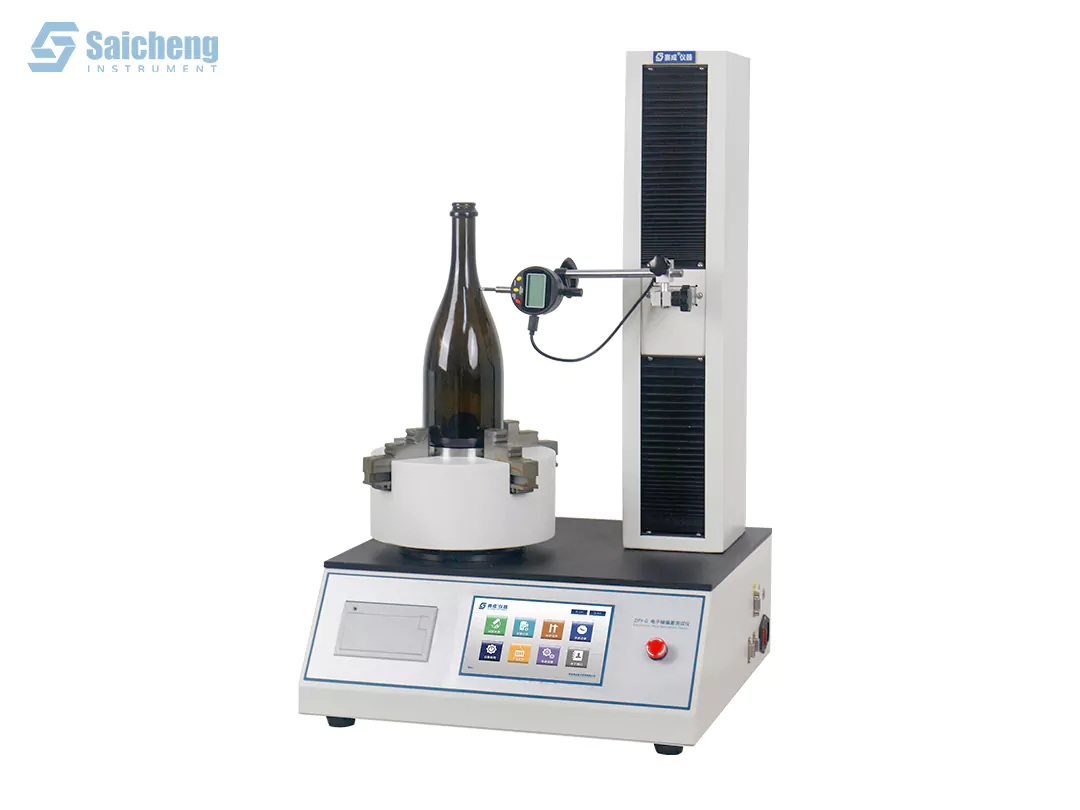

Bottle Axis Deviation Tester ZPY-G
- Model: ZPY-G
- Brand: Saicheng Instrument
- Category: Products
- Rating:
- Supply: 10 Sets / Week In stock!
- Price: Competitive Price
- Share:
Product Introduction
ZPY-G Bottle Axis Deviation Tester is designed to measure the perpendicularity (deviation) of preforms for ampoules, vials, PET bottles, and other containers used in the pharmaceutical, food, beverage, and cosmetic industries. According to the international standards, the innovative design and the fully automated test process greatly improves the accuracy of the test for preforms.
It had a basic turntable on which the preform was placed and rotated, with a probe checking the difference in movement. The Electronic Axis Deviation Tester checks the perpendicularity (deviation) of the PET preform, which depends on the shape, size and quality of the product.
Perpendicularity Tester / Bottle Deviation Tester: Describes its primary purpose—measuring how much the finish (mouth/neck) of a bottle or container deviates from being perfectly perpendicular (90°) to its base.
Coaxial Tester / Circle Runout Tester: Describes the methodology. It checks if the central axis of the bottle's finish is coaxial (aligned) with the axis of its body. "Runout" refers to the wobble or deviation observed as the bottle rotates.
Product Features
- 7-inch colourful touch LCD screen, microcomputer control, automatic grouping statistics maximum, the minimum, the average value
- Two test modes of perpendicularity and circular runout to meet different test requirements.
- 360°full angle compensation measurement deviation to ensure test accuracy.
- Equipped with the micro printer, and the upper computer data can be stored unlimitedly.
- Professional software, real-time curve display, data storage, EXCEL statistics, A4 test report printing.
- Software user classification authority management, data statistics and audit functions meet industry requirements of GMP.
Principle
Fix the bottom of the bottle on the rotating plate of the horizontal plate, make the mouth of the bottle touch the dial gauge, and rotate 360° to read the maximum and minimum values. 1/2 of the difference between the two is the perpendicularity value.
Test Standards
This test instrument conforms to many national and international standards:
GB/T 8452-2008, GB/T 2639, QB/T 2357, QB/T 1868, YBB00332002-2015, YBB00332003-2015, YBB00032004-2015
Technical Specifications
| Items | Specifications |
|---|---|
| Test Range | 0 ~ 12.7 mm/0.5″ |
| Resolution | 0.001 mm/0.00005″ |
| Sample Diameter | 4 mm ~ 200 mm |
| Sample Height | 5 mm ~ 400 mm |
| Electric Chuck Speed | 1 ~ 30 r/min |
| Testing Head Speed | 0 ~ 500 mm/min (Electronic) |
| Power Supply |
AC 100-240V 50/60Hz (can be changed to local requirement) |
| Instrument Dimension | 450 mm (W) x 450 mm (D) x 800 mm (H) |
| Net Weight | 58 kg |
Configurations
Standard Configurations: Instrument, Micro Printer
Optional Parts: Professional Software, 485 Communication Cable
